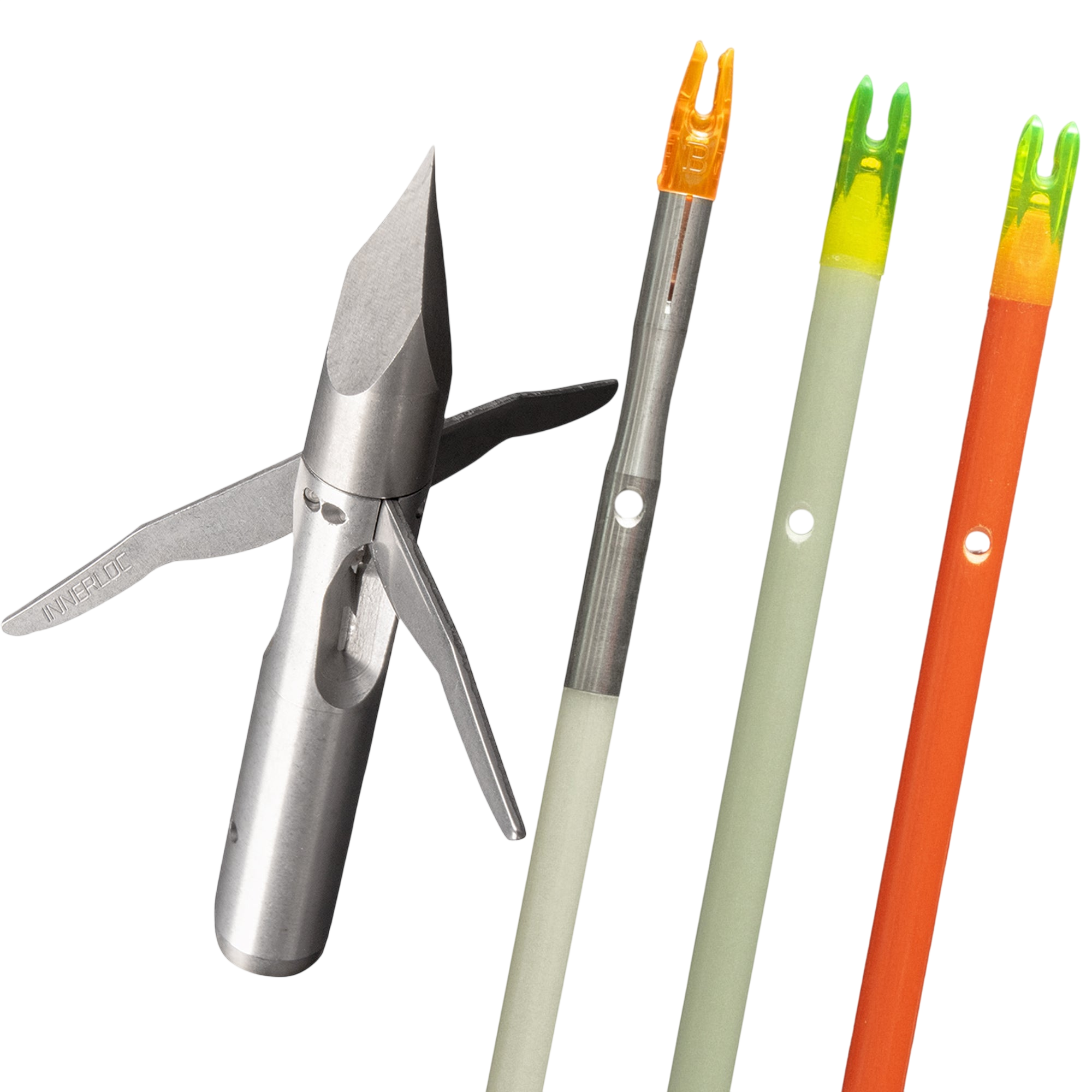

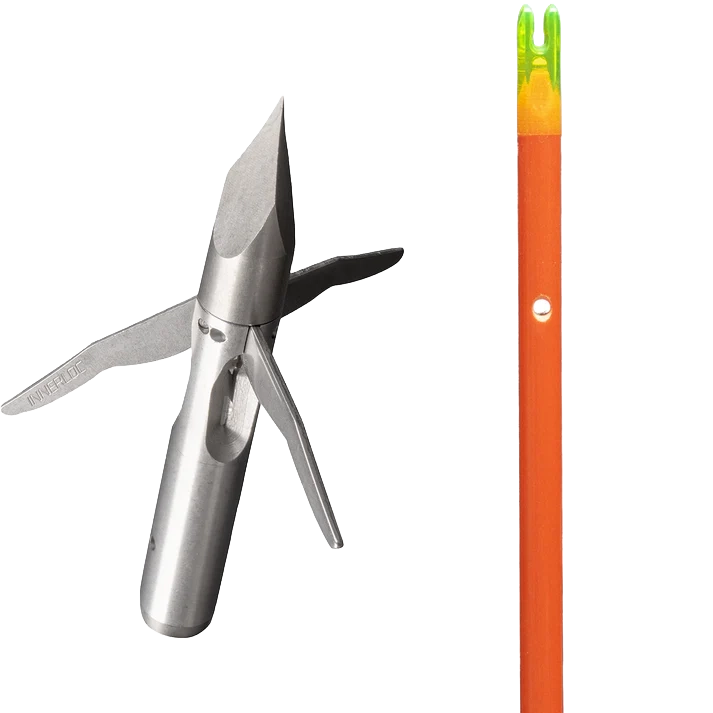

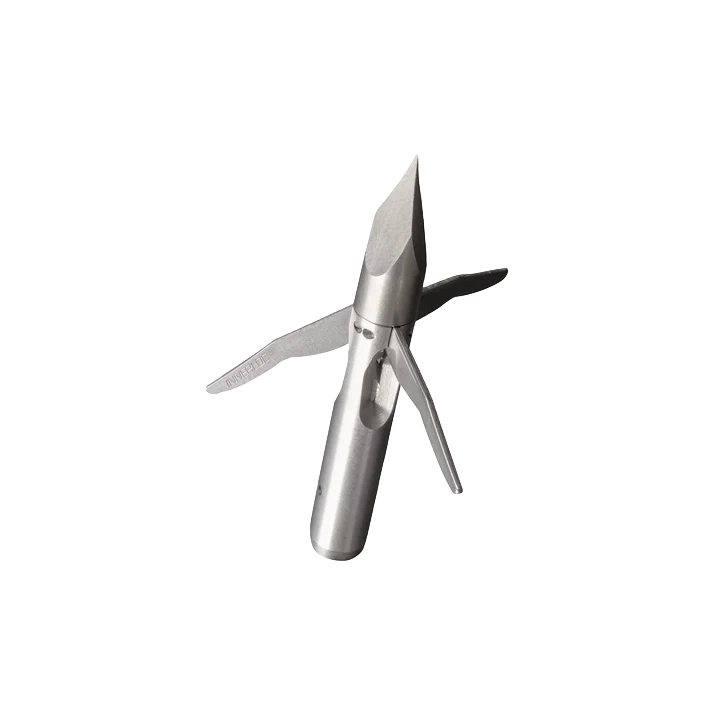

3 Barb Arrow Assemblies

STAGES OF OPERATION

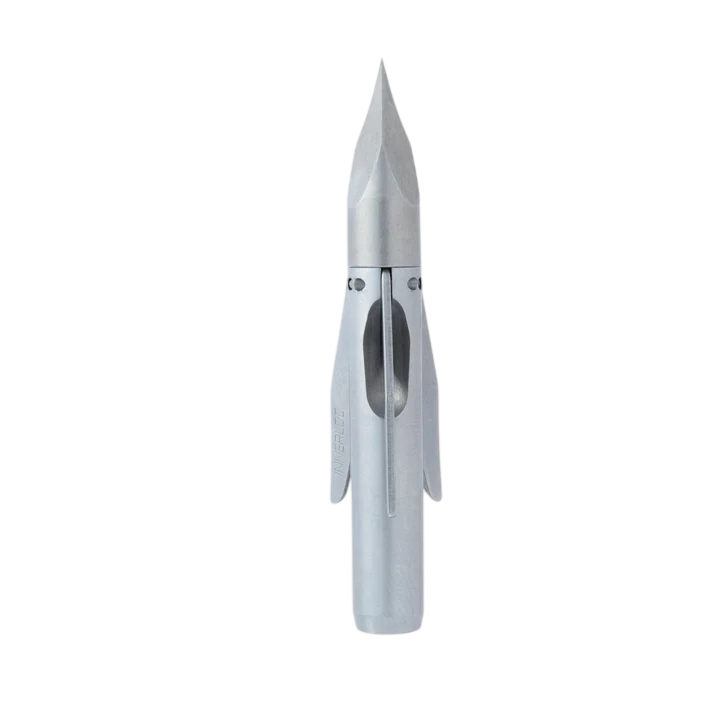

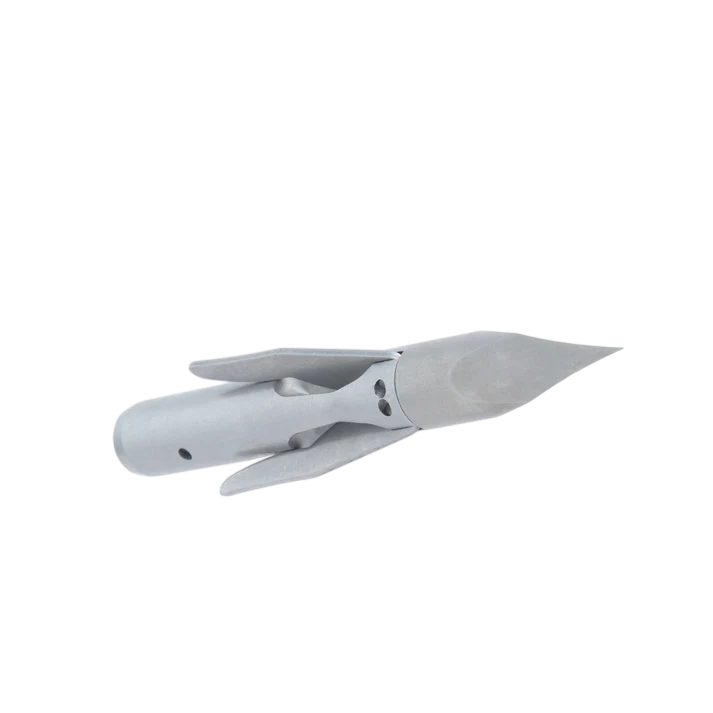

1: Closed, small profile for true tracking underwater and deep penetration.

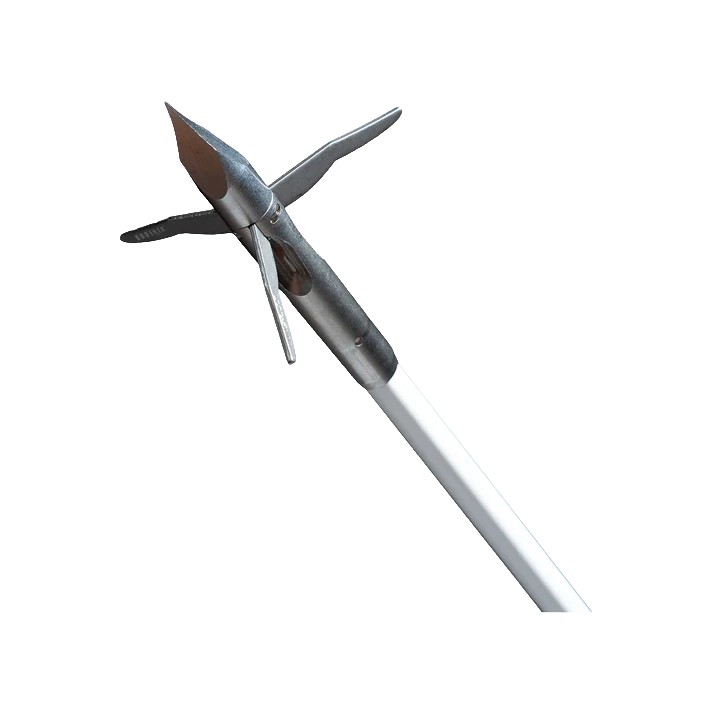

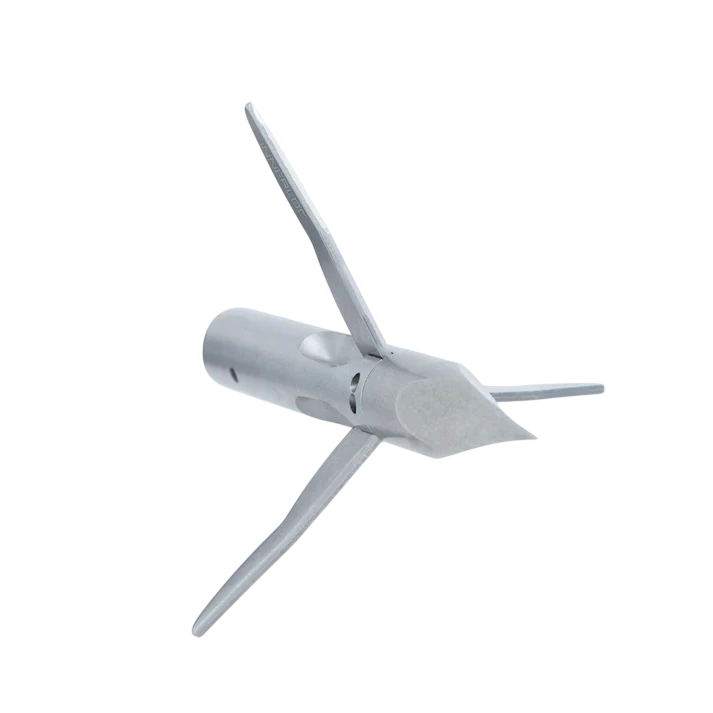

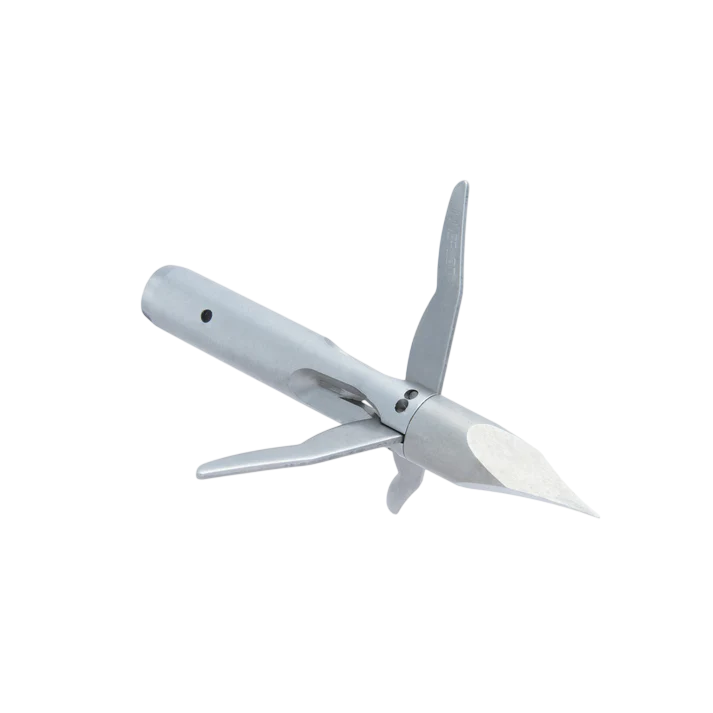

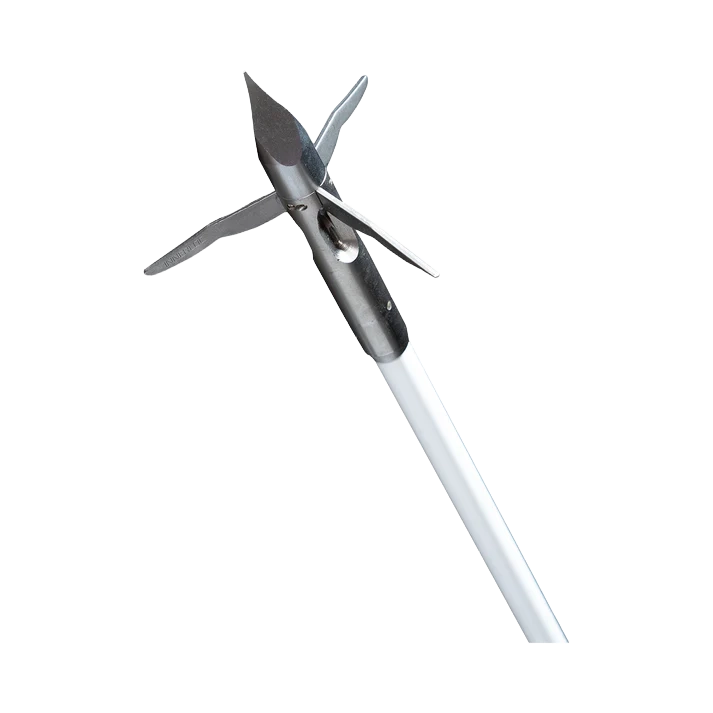

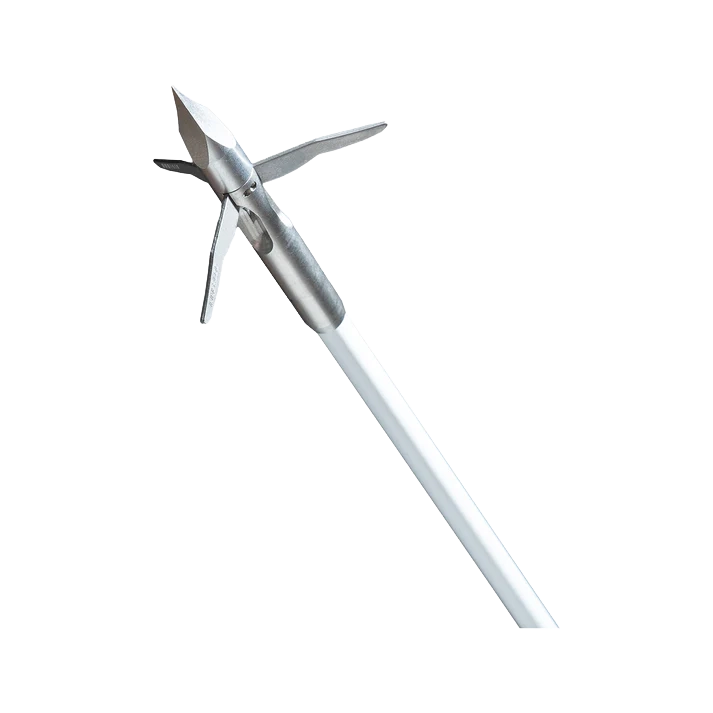

2: Open, extra large holding area to eliminate pull outs.

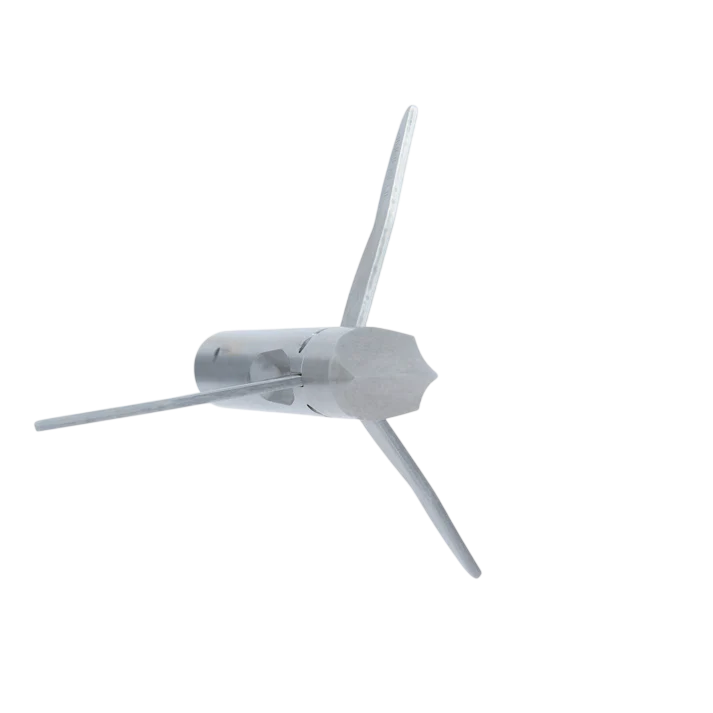

3: Release, barbs fold forward to allow for quick removal of fish from arrow.

4: The cutaway view shows stud on the front of the body engaging the bushing inside of the tip. This stops vibration and eliminates loose and lost tips, a problem that plagues other points.

Arrow and Adapter… Unite!

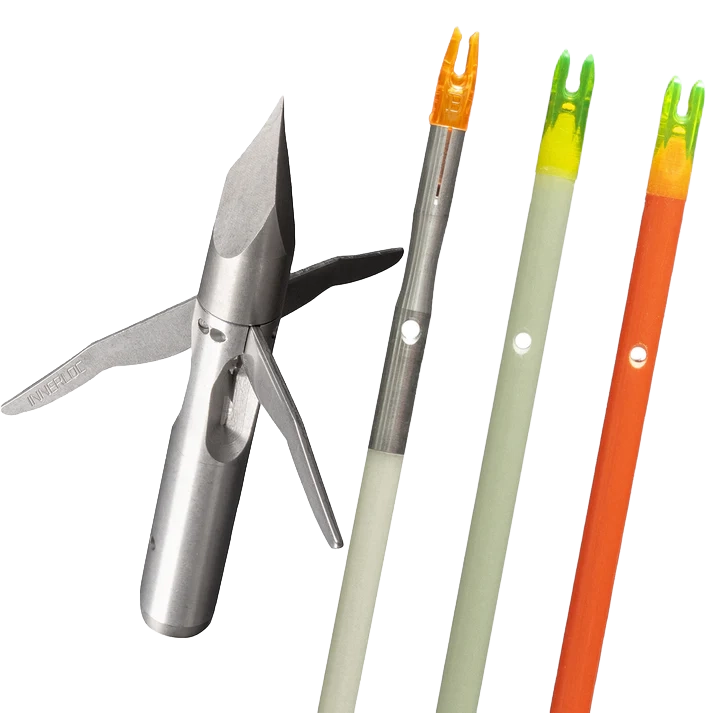

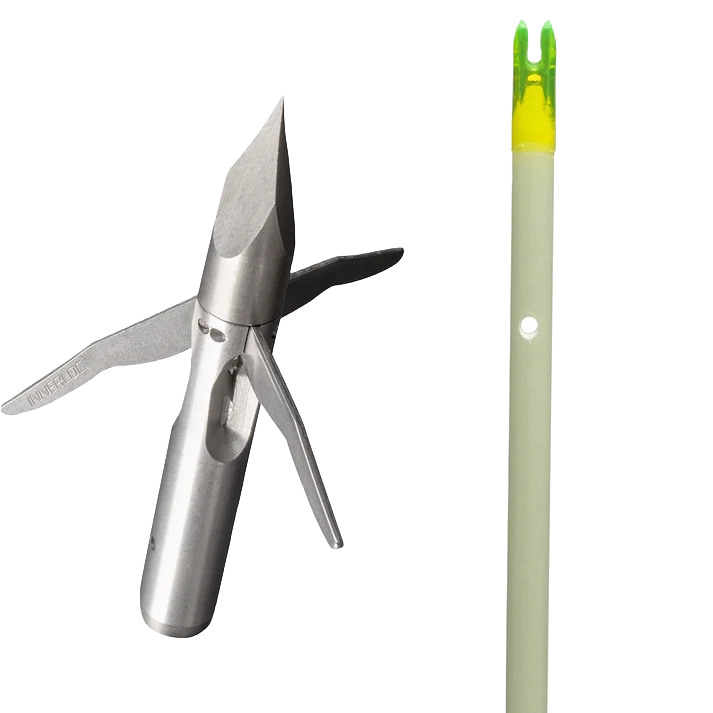

Our new Unity™ Arrows are a combination of a stainless steel rear section that permanently attaches to specially prepared premium fiberglass arrow blanks. Unity™ Arrows feature Taper-loc™ a strong and secure crimped connection that provides a smooth transition. The strength of this connection makes possible a threaded slide stop hole into the stainless steel section. Moving the hole strengthens the entire arrow by eliminating the hole in the fiberglass. Designed with a large battery compartment to fit all lighted nocks. CNC machined from solid stainless steel. Available in Glow or Orange fiberglass. Patent pending.

A: Slotted for ideal nock fitment.

B: Room to fit all standard and lighted nocks.

C: Strong threaded slide stop hole.

D: Taper-loc uses reverse tapers to achieve a permanent connection between arrow blank and durable stainless steel rear section.

E: Eliminates stop hole in fiberglass which is a common point of failure.
