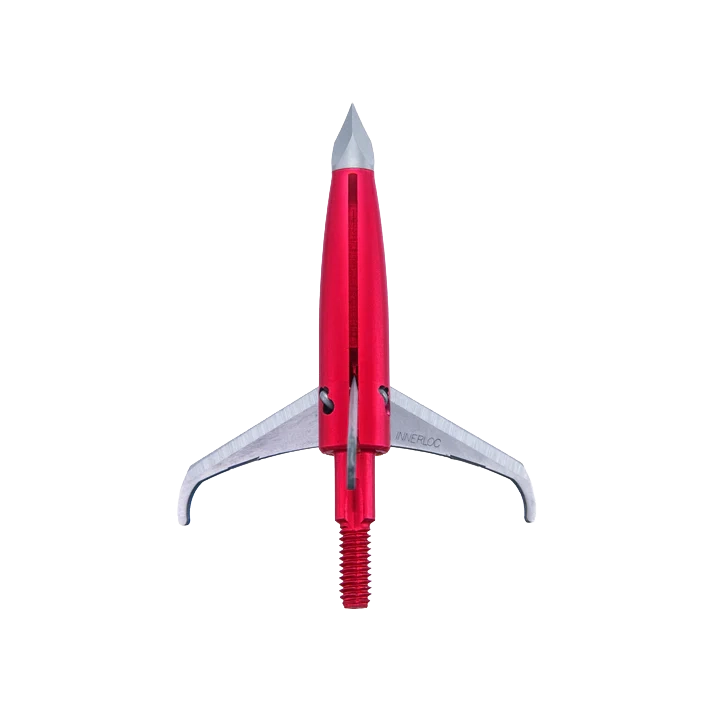

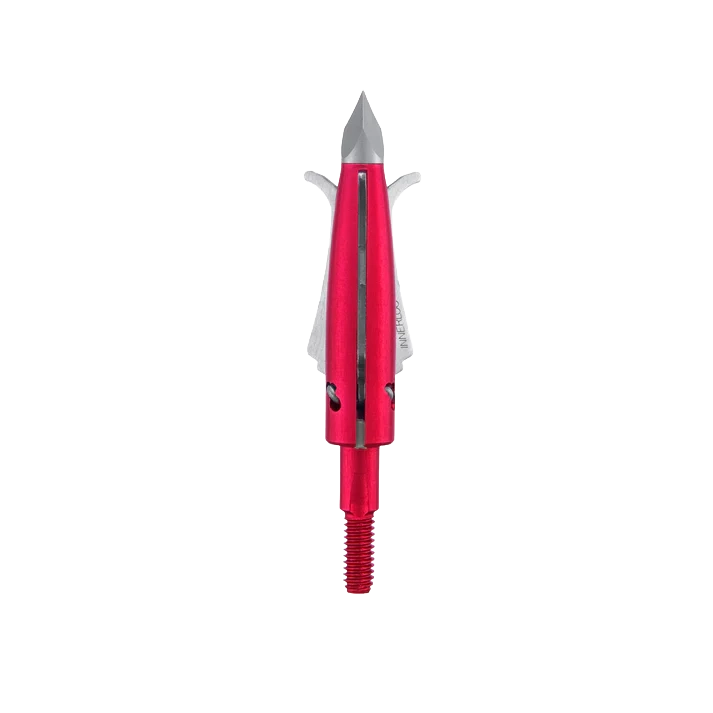

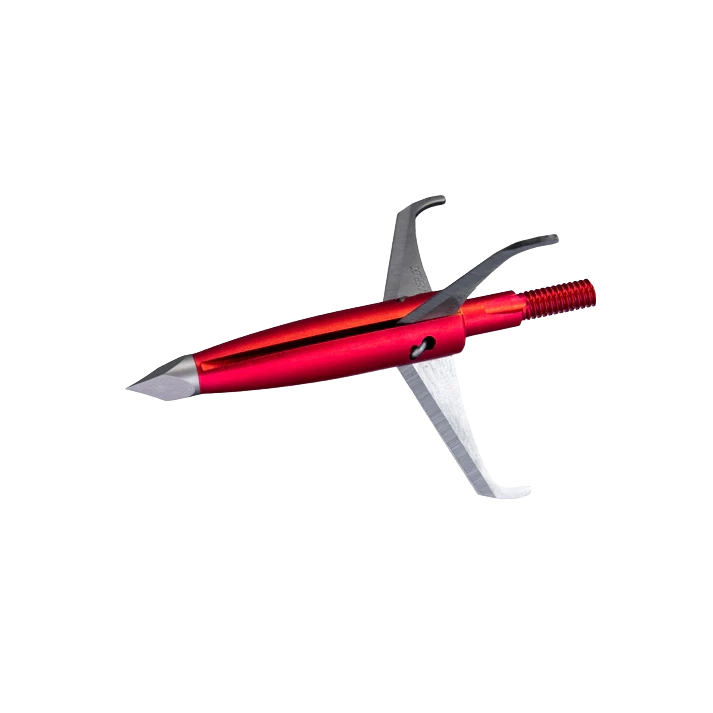

3725 125 Gr. Devastation 3Pk.
Devastation’s™ Dynamic Blade Control™ features replaceable cushion inserts positioned behind the blades. They soften the blow on normal impacts and can crush completely when impacting bone helping the blade to continue to slice.
Use
775-9 Replacement Blades
DBC Insert Material
3 pack
Technology Used:

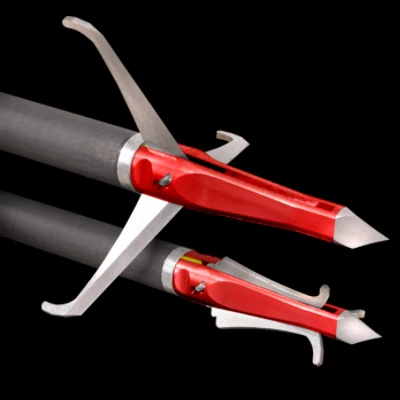

Our new Dynamic Blade Control™ system features a patent pending cushioned blade stop that is inserted into the slots behind the blades. When the blades open they contact the cushions lessening the stresses on the assembly. If a blade hits bone, the extra force further crushes the insert allowing that blade to sweep back and easily continue slicing. Devastation™ brings Big Blood and Big Reliability. This new technology allows for the Massive 2” cut three blade design. Our proven Clip-Loc™ blade retention system has been tweaked for reliability in the fastest bows and crossbows of today and the future. Built out of aluminum and stainless steel and sports .040” thick blades slicing a whopping 2” cut diameter. Comes in 3 packs with replacement cushion insert material included.
The Technology

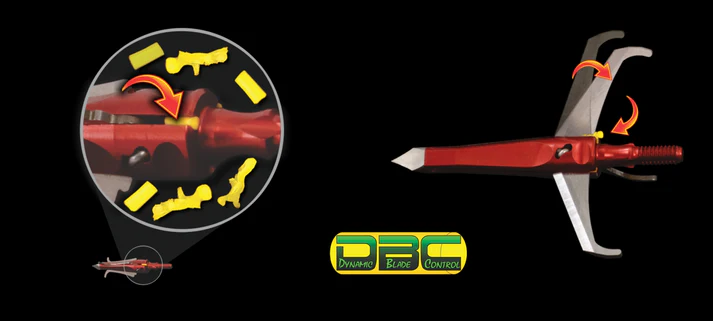

Devastation’s™ Dynamic Blade Control™features replaceable cushion inserts positioned behind the blades. They soften the blow on normal impacts and can crush completely when impacting bone helping the blade to continue to slice.
How To: Blade Replacement
1. Remove Cliploc™
Using the tool supplied push the end of the Cliploc™ pin out through the hole into the blade and out the opposite side of the ferrule.
2. Remove Old Blade
Lift out and discard the old blades in a safe manner (we recommend placing the blades in a container and wrapping with tape). Repeat for all blades.
3. Test Fit New Blade
Place new blade in position to make sure blade fits properly and channel in ferrule is clean and free of obstruction. Sharp edge of blade faces inward.
4. Replace Cliploc™ to Secure Blade
Holding the broadhead as shown, place the longer leg of the Cliploc™ pin into the upper hole which will pass through the hole in the blade. Press gently with your thumb as you “wiggle” the blade. When the hole in the blade aligns with the pin, you will feel the pin “seat”.
5. Lock Cliploc™ Into Position
Using the flat side of the tool, push firmly until the Cliploc™ “snaps” into position. The spring pressure needed to operate the blade will only occur when the Cliploc™ is fully seated in the groove.
6. Final Position
When properly positioned, the Cliploc™ pin is flush with the surface of the ferrule and fully depressed into the groove as shown. Carefully open the close blade several times to assure smooth operation.
DBC Instructions
Dynamic Blade Control™ Insert Replacement
Replace after each shot during practice to prevent blade damage.
1.
Carefully remove the broadhead from the arrow freeing the DBC inserts from behind the arrow.
2.
Keeping the blades closed, insert the included multi-tool into the slot behind the DBC insert.
3.
Pull the pin of the multi-tool through the slot from front to back to remove the used DBC insert.
4.
Once clean, slide the end of the DBC material into the opening, material will reach a firm stop.
5.
Carefully trim the material flush with the back of the broadhead using a knife edge.
6.
Properly trimmed inserts. They are locked in place once broadhead is put onto an arrow.
