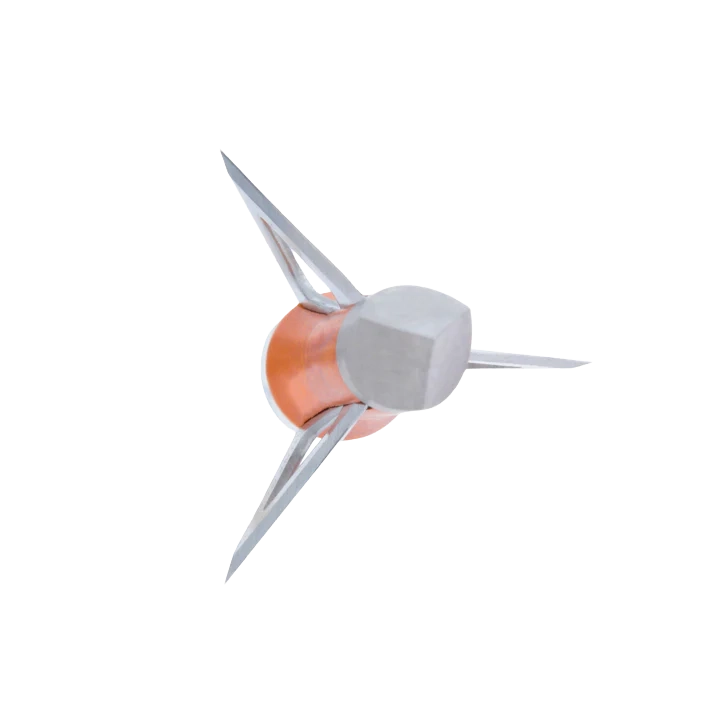

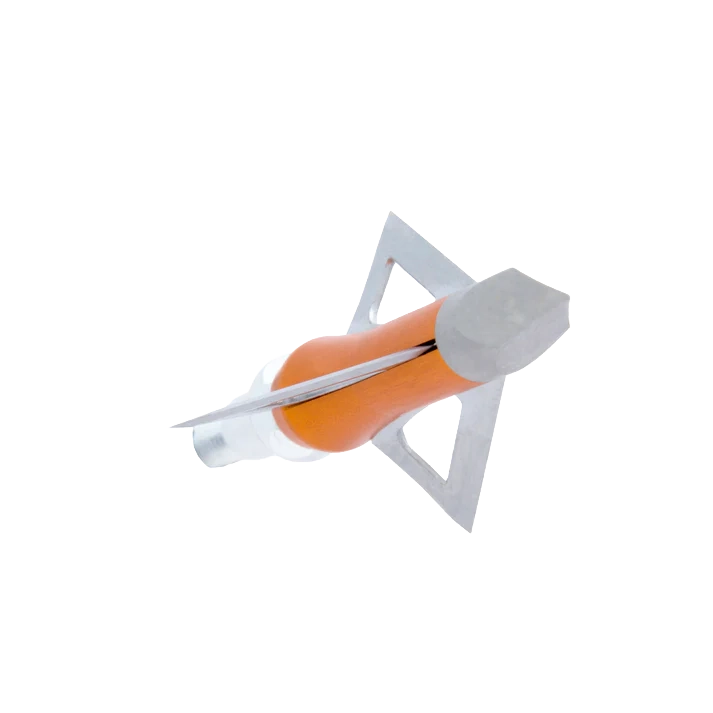

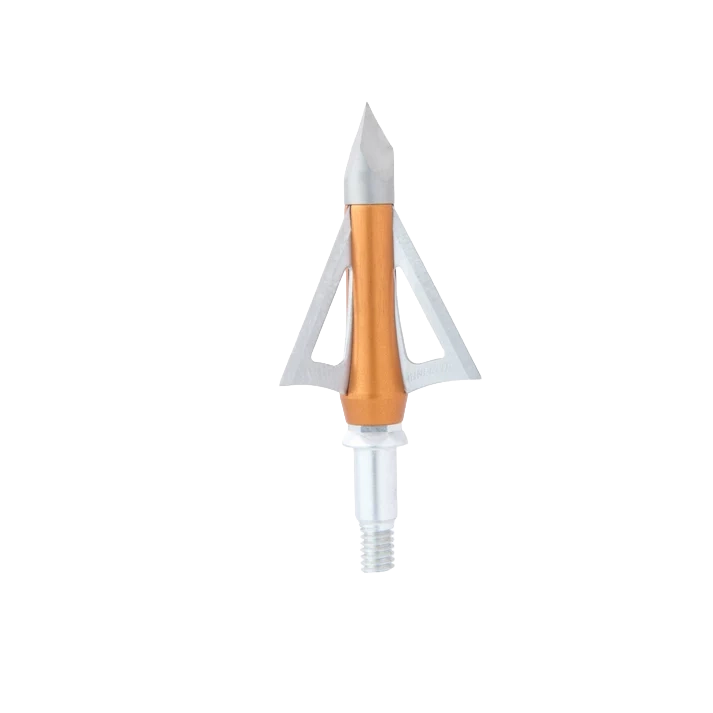

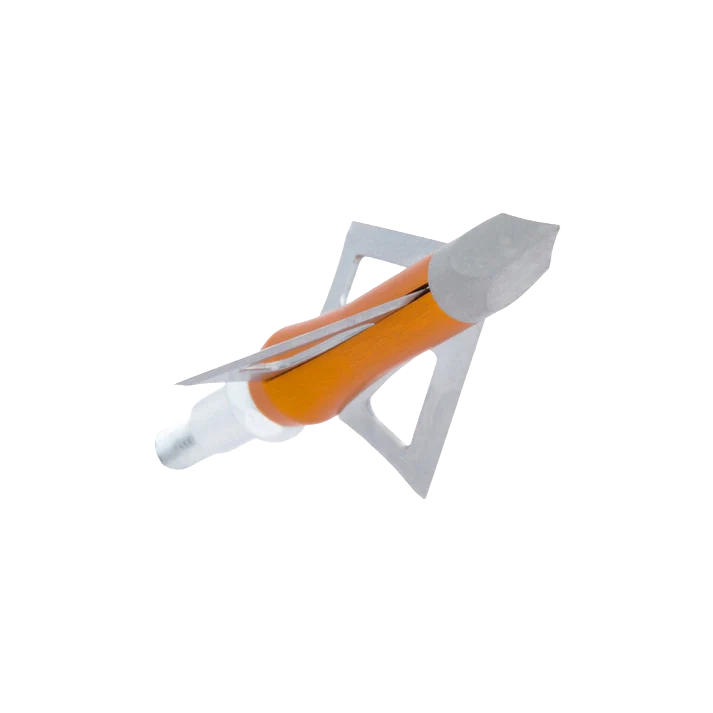

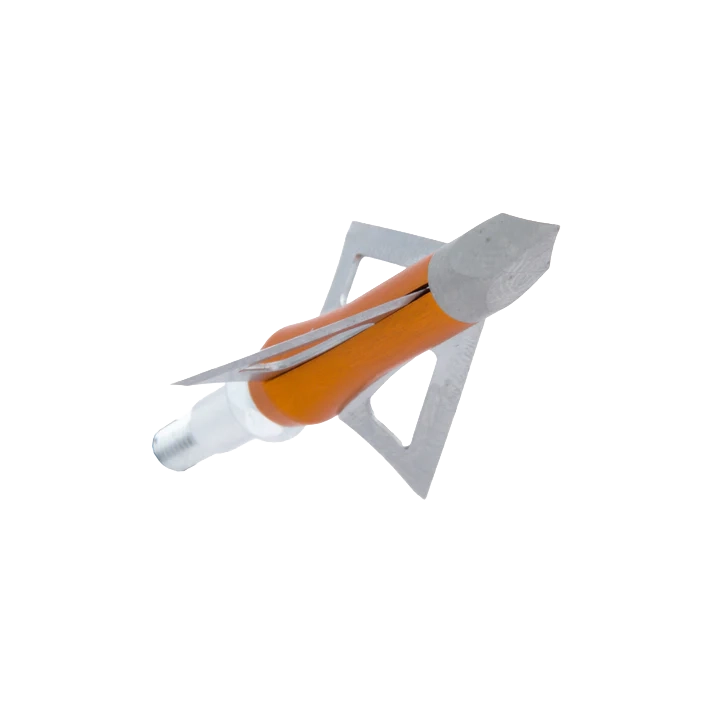

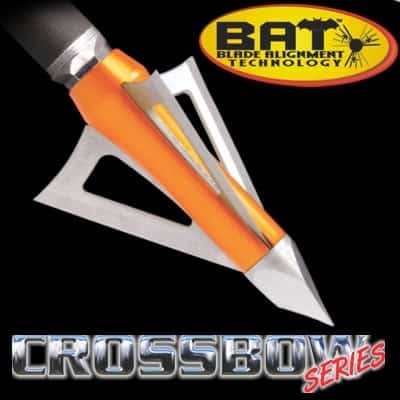

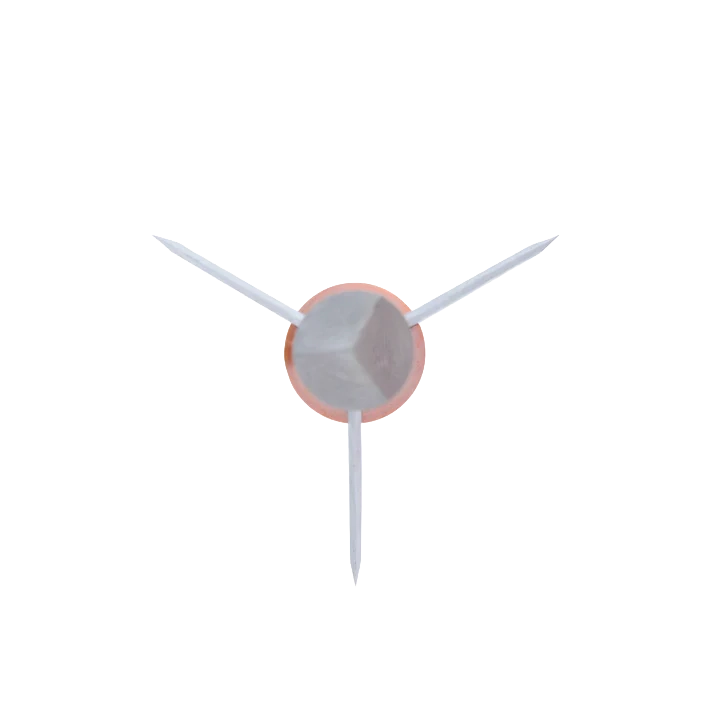

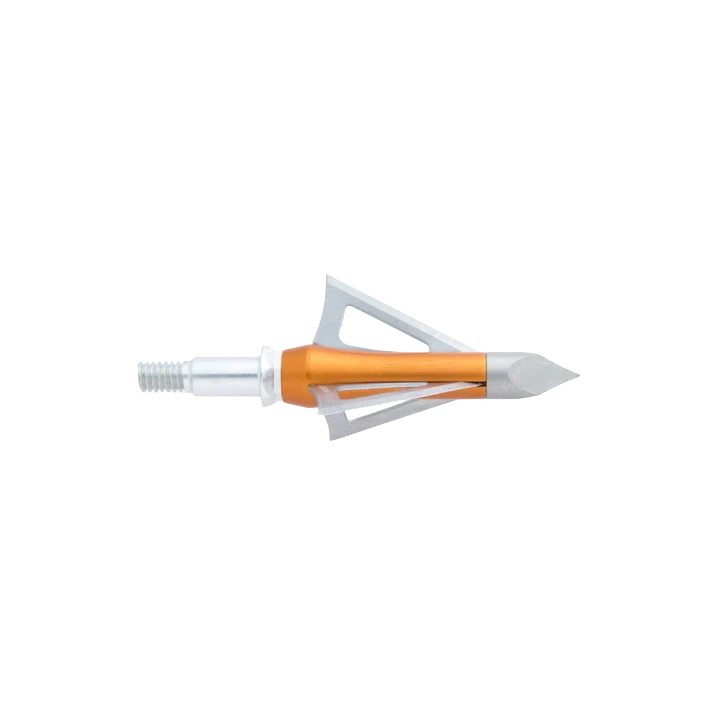

Slice Fixed Blade Broadhead for Crossbows 100gr
Innerloc Broadhead’s Slice Fixed Blade Broadhead for crossbows features patented tapers to precisely align the Slice Fixed Blade broadhead rotation to your standard crossbow bolts.
The Slice Fixed Blade Broadheads for crossbows creates a Fast and easy alignment… the perfect tuning solution for crossbow bolts. Slice™ fixed blade broadhead models feature patented matching tapers on the front of the broadhead base and inside of the broadhead body that join for a precise fit and alignment. The tip passes through the body of the fixed blade broadhead securing the blades
1 1/16″ Cut diameter
.027 Blade thickness
100gr. 3 pack
Technology Used:
The Technology
Slice™ models feature patented matching tapers on the front of the broadhead base and inside of the broadhead body that join for a precise fit and alignment. The tip passes through the body securing the blades the same as earlier Center Locking System™ broadheads (below). Only now the tip(#1) threads into the front of the base (#2). This results in a new Blade Alignment Technology™ because you can simply align the blade assembly prior to tightening the tip. Two way compression happens as the tip is tighten. The blades are secured into the assembly and the mating tapers of the base and body(#3) are also tightened. This locks your newly set blade orientation. Flats machined into the base allow the use of a wrench to remove from an arrow without damage to the taper. Our quickest tuning broadheads yet!
#1: The matching bevels at the top of the ferrule and inside the edge of the tip create a “clamping” action when the tip is tightened. The tip, blades and ferrule are forced together so tightly they perform much like solid metal.
#2: The blades (gold areas show how parts mate when assembled) are “L”-shaped for unmatched strength and the base of the “L” is curved to lay perfectly against the round shaft of the tip. Metal to metal contact top to bottom!
#3: The heart of the Center Locking System™ is the Tip. By extending it throughout the length of the broadhead body, Innerloc can thread the tip into the base.This is the strongest area of the entire broadhead and securing the tip at this point transfers a walloping amount of arrow energy on impact!
“Sharp Beyond” All Innerloc® fixed blade broadheads feature Endur-Edge™. A special manufacturing and tempering process on the highest quality stainless steels that yields an ultra durable blade edge. This keeps the broadhead sharp as it passes through it’s target, causing better blood trails. Everyone knows the importance of sharp broadhead blades. But a sharp blade that won’t hold it’s edge is no more effective then a dull blade. Endur-Edge™ blades stay keen after they punch through hair and hide to slice the vitals effortlessly causing the immense blood trails and quick bleed-outs that Innerloc® is famous for.
Assembly Instructions
1. Loosen the tip
Slide the triangle shape of the supplied wrench over the point of the tip. Carefully loosen the tip.
2. Unscrew the tip
The tip can now be turned counter clockwise to disengage the threads.
3. Remove the tip
Slide the tip out of the front of the body. Note the way the blades wrap around to create room for the tip to slide in and out.
4. Take out the blades
One at a time slide the blades out of the front of the body. See the way the blades “L” shaped flange is located within the hole of the body.
5. Reinstall sharp blades
You can now install new sharp blades by following the steps above in reverse order.
” IMPORTANT TIP” With Innerlocs’® front loading design and Center Locking System™ you can change the blades without removing the broadhead body from the arrow. This means you won’t de-tune the broadhead to arrow union assuring continued accurate flight with the new blades.
