$36.76
Patriot Pack includes: 3 broadheads, 6 arrow wraps and can cooler. 3 Blade 100 gr.
Show your patriotism by carrying one arrow in your quiver that proudly displays the red/white /blue. The new American Eagle™ is a 3 blade, 100 grain, 1 inch cut design that features Innerloc’s proven Center Locking System™. Blades are .027″ Proudly built in the USA, with the quality you have come to expect from Innerloc.

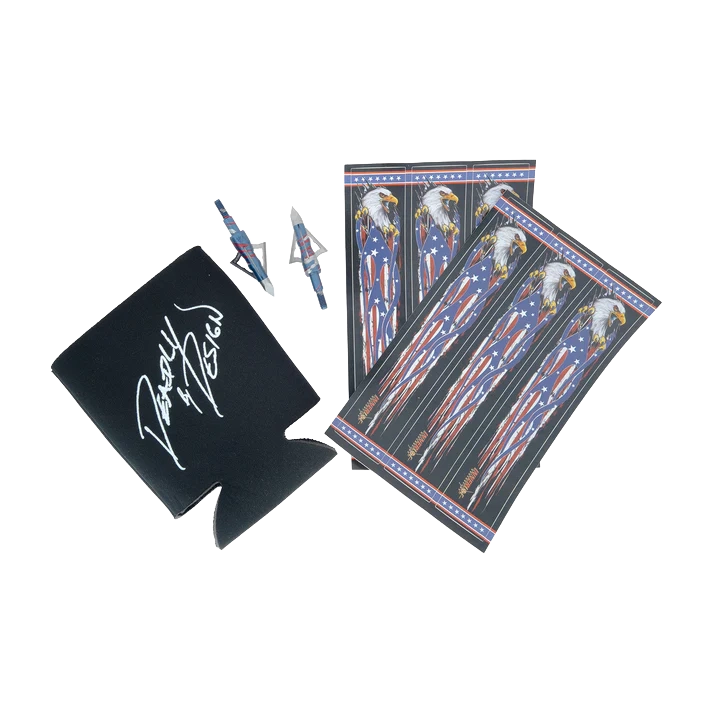

The American Eagle Patriot Pack is a limited-style Innerloc broadhead package built as a tribute to American patriots. This package includes 3 American Eagle™ broadheads, 6 eagle flag arrow wraps, and a Deadly by Design™ Innerloc-Country can cooler, giving hunters a bold red, white, and blue setup for their quiver.

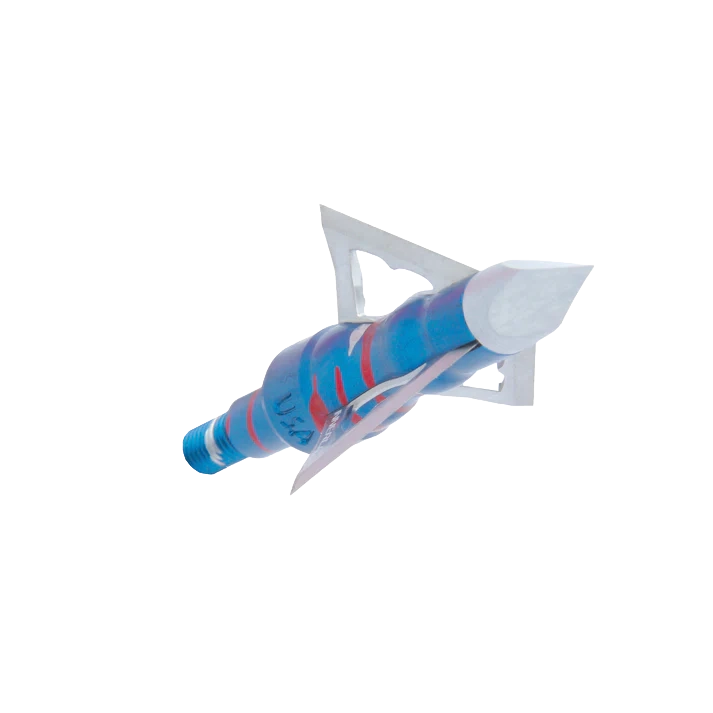

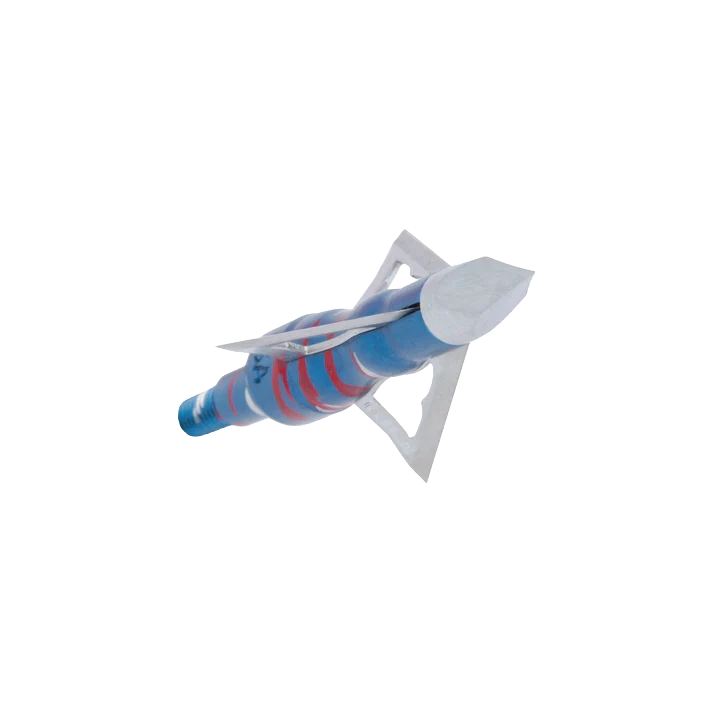

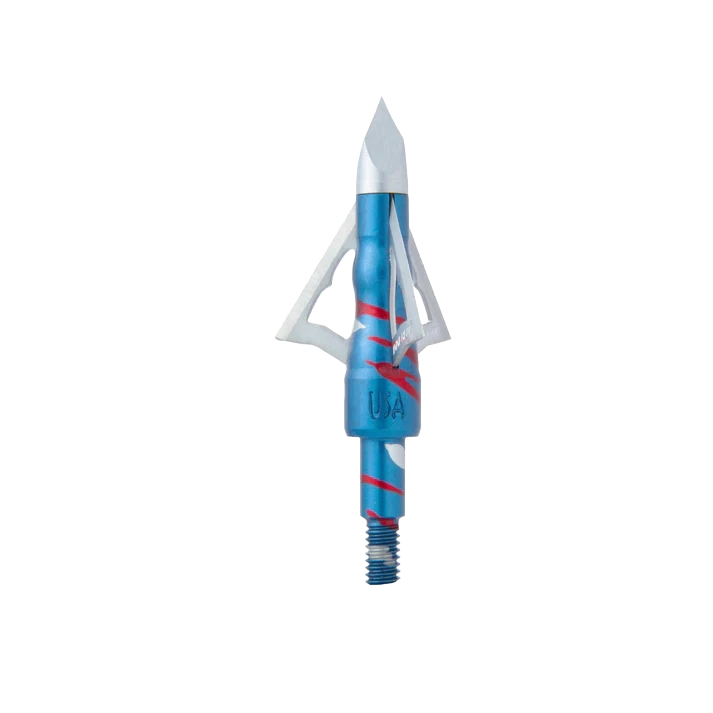

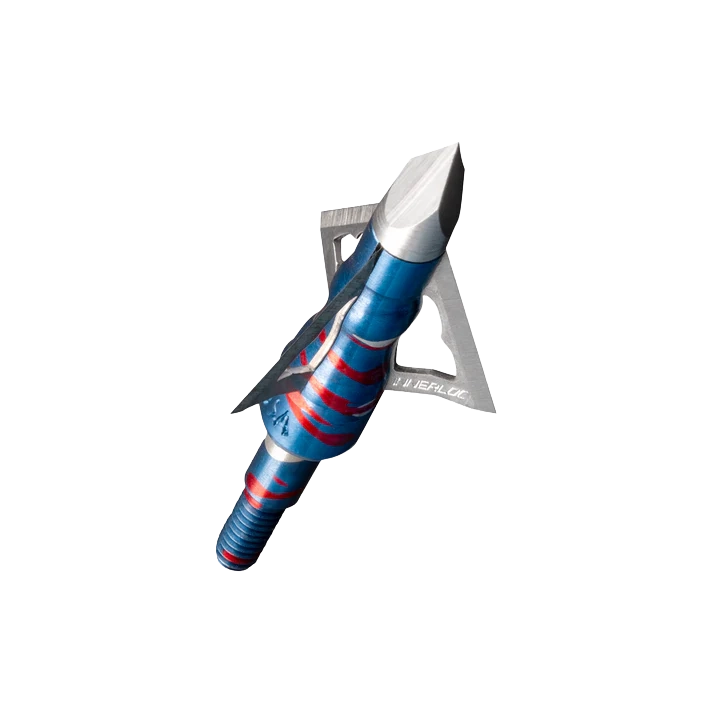

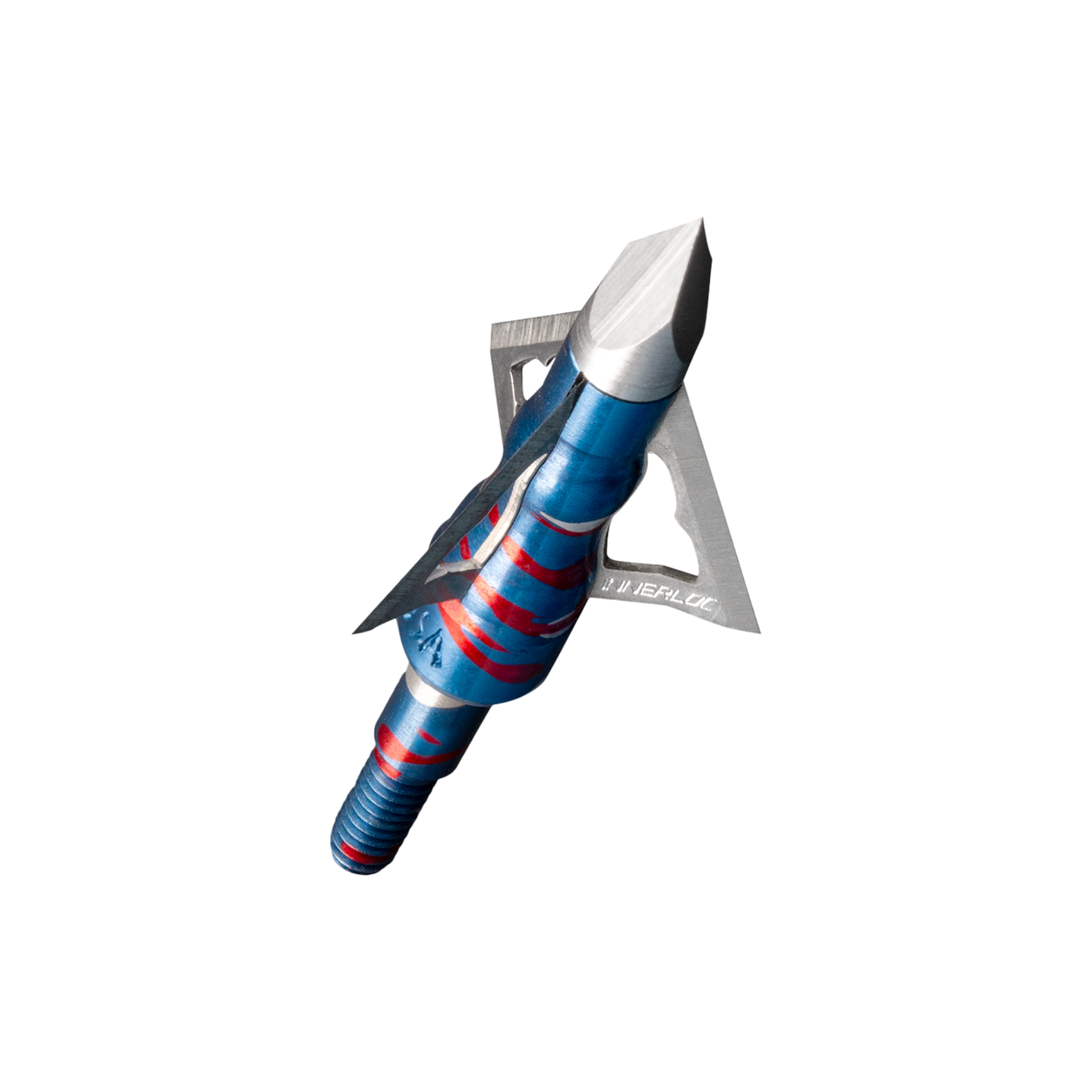

The American Eagle™ broadhead is a 3 blade, 100 grain fixed blade design with a 1″ cutting diameter and strong .027″ blades. Built with Innerloc’s proven Center Locking System™, this broadhead locks the tip, blades, and ferrule together for reliable alignment, strength, and field-ready performance.

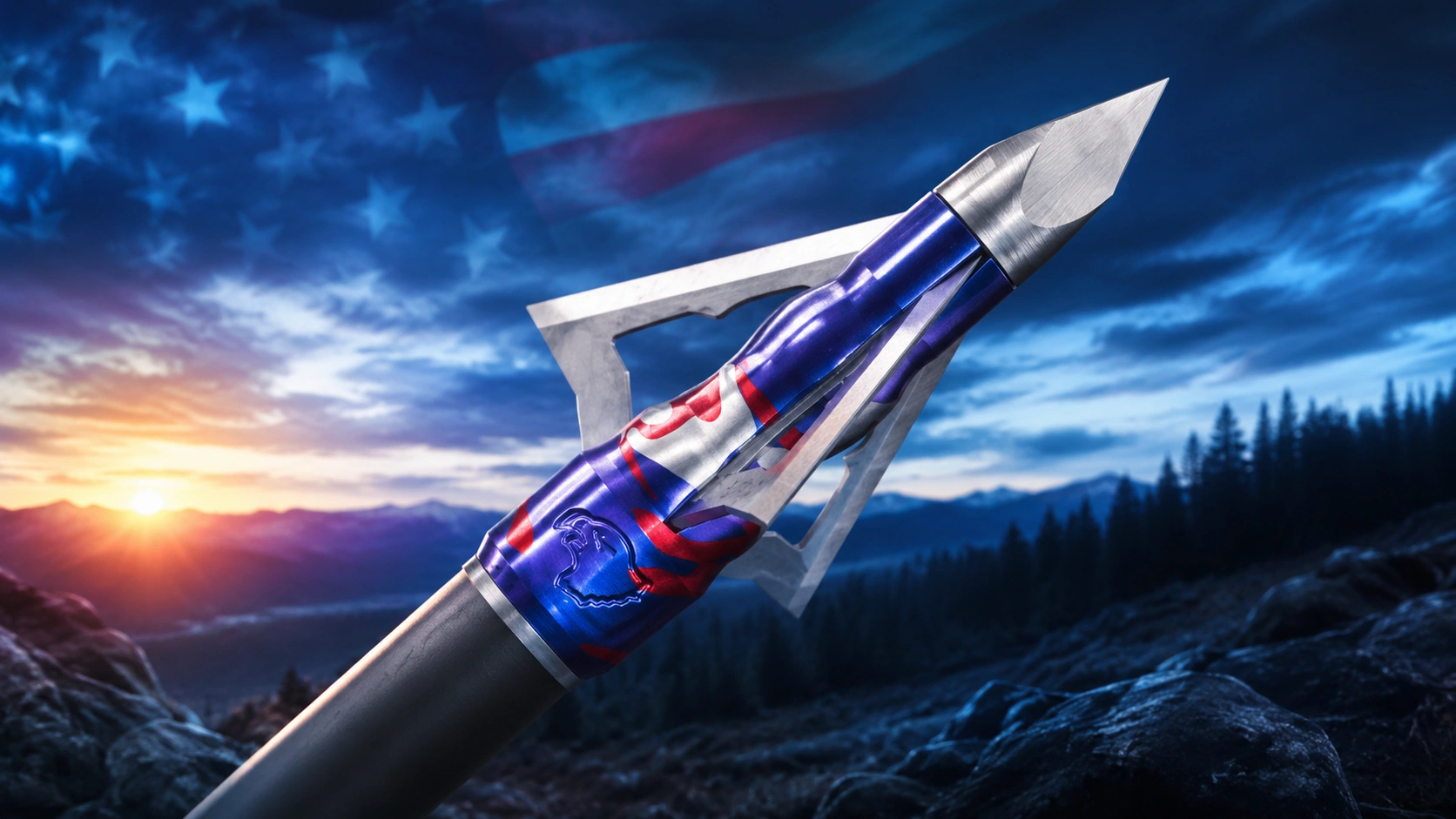

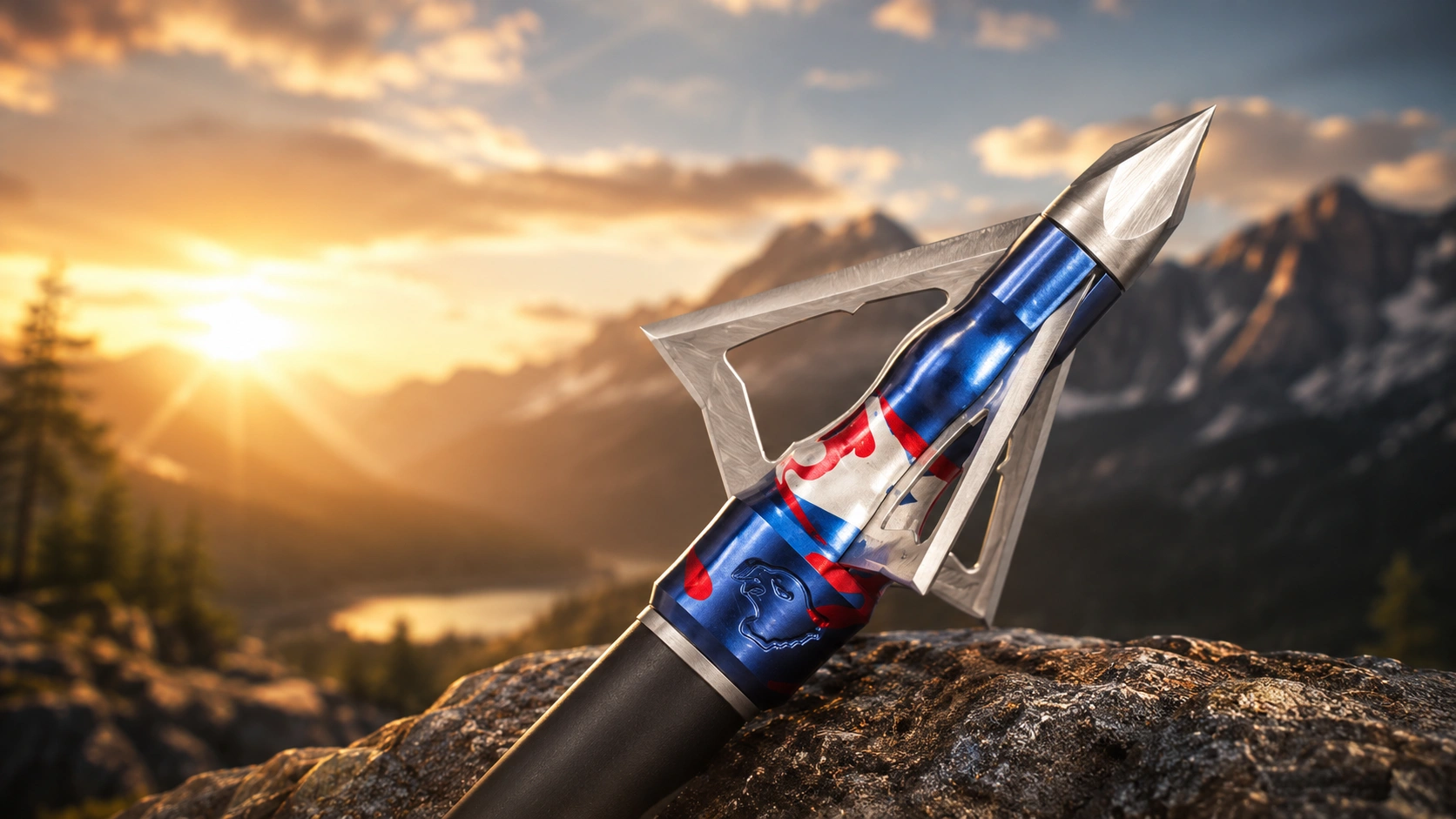

Designed with patriotic styling, the American Eagle™ features red, white, and blue anodizing, USA and Eagle stampings at the base of the ferrule, and eagle-inspired blade vents. Proudly built in the USA, this broadhead delivers the quality hunters expect from Innerloc with a standout look that honors American pride.
Compatible replacement parts include 730-18 Replacement Blades and 6536 Replacement Tips.
| Weight | 0.1875 lbs |
|---|---|
| Dimensions | 8.25 × 5.25 × 1.4 in |
| Aero | No |
| Blade Count | 3 |
| Material | Stainless Steel |
| Blade Thickness (inches) | 0.027 |
| Cut Diameter (inches) | 1 1/16 |
| Cut on Contact/Chisel | Chisel |
| Ferrule Material | Aluminum |
| Made In USA | Yes |
| Pack Count | 3 Pack |
| Replace Blade Y/N | 730-18 |
| Replace Tip Y/N | 6536 |
| Tuneable | No |
| Weight Grain | 100 |

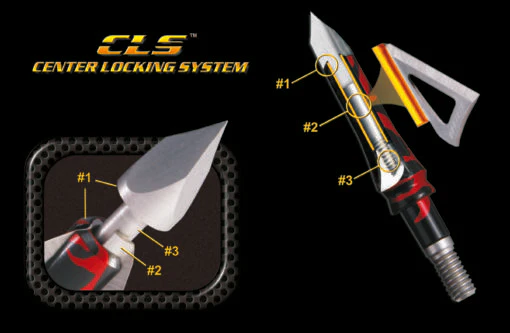

#1: The matching bevels at the top of the ferrule and inside the edge of the tip create a “clamping” action when the tip is tightened. The tip, blades and ferrule are forced together so tightly they perform much like solid metal.
#2: The blades (gold areas show how parts mate when assembled) are “L”-shaped for unmatched strength and the base of the “L” is curved to lay perfectly against the round shaft of the tip. Metal to metal contact top to bottom!
#3: The heart of the Center Locking System™ is the Tip. By extending it throughout the length of the broadhead body, Innerloc can thread the tip into the base.This is the strongest area of the entire broadhead and securing the tip at this point transfers a walloping amount of arrow energy on impact!
“Sharp Beyond” All Innerloc® fixed blade broadheads feature Endur-Edge™. A special manufacturing and tempering process on the highest quality stainless steels that yields an ultra durable blade edge. This keeps the broadhead sharp as it passes through it’s target, causing better blood trails. Everyone knows the importance of sharp broadhead blades. But a sharp blade that won’t hold it’s edge is no more effective then a dull blade. Endur-Edge™ blades stay keen after they punch through hair and hide to slice the vitals effortlessly causing the immense blood trails and quick bleed-outs that Innerloc® is famous for.
Slide the triangle shape of the supplied wrench over the point of the tip. Carefully loosen the tip.
Turn the tip counter clockwise to disengage the threads from the broadhead body.
Slide the tip out of the front of the body. Notice how the blades wrap around to create room for the tip to slide in and out.
Slide the blades out of the front of the body one at a time. Notice how each blade’s L-shaped flange sits inside the body.
Install new sharp blades by following the steps above in reverse order. Make sure the blades are seated correctly before tightening the tip.
